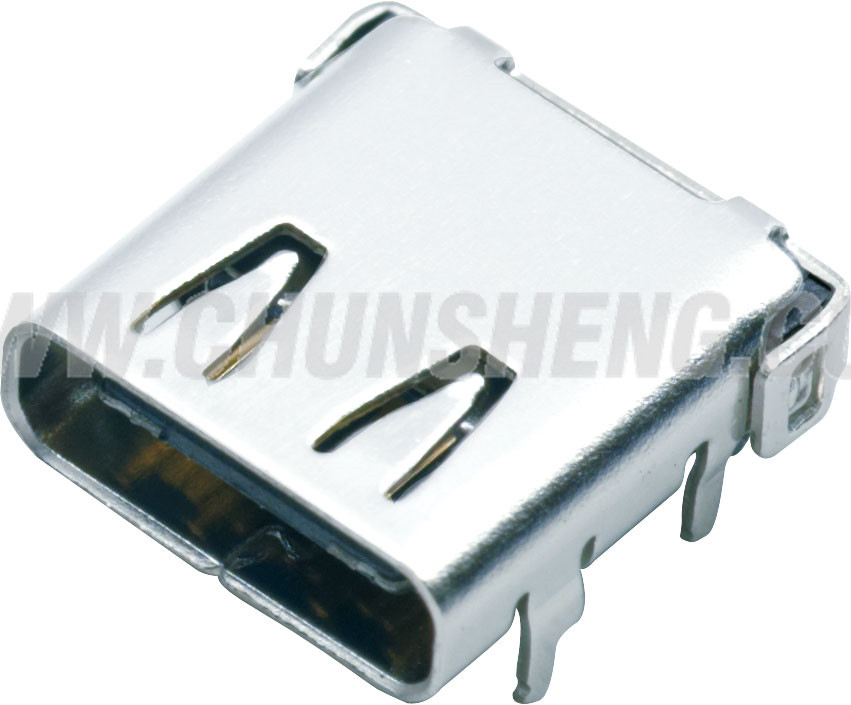

| USB3.1 -115 -PC12R -01 |
| Upload Time: 2019-04-08 16:41:30 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤40mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 100V AC/minute | | Current Rating | 5A MAX. FOR VBUS &GND
0.5A FOR OTHER PINS. | | Temperature Range | -30℃～+85℃ | | Insertion Force | 5~20N | | 拨 出 力 | 8~20N | | Life | 10000 Cycles
|
|
|
|
|
