DIN-405A
Upload Time: 2019-04-08 16:40:07

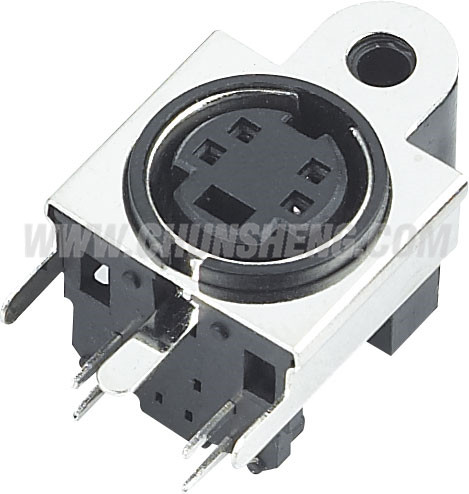

 DIN-405A
Click for larger image
SPECIFICATION
Contact Resistance≤30mΩ
Insulation Resistance≥100MΩ
Withstand Voltage500V AC/minute
Rated Load30V DC 0.3A
Terminal Strength≥5N
Temperature Range-25℃~+70℃
Insertion and Extraction Force

3N~30N(for no switch)
4N~40N(for switch)

Terminal Strength≥5N
Life5000 Cycles

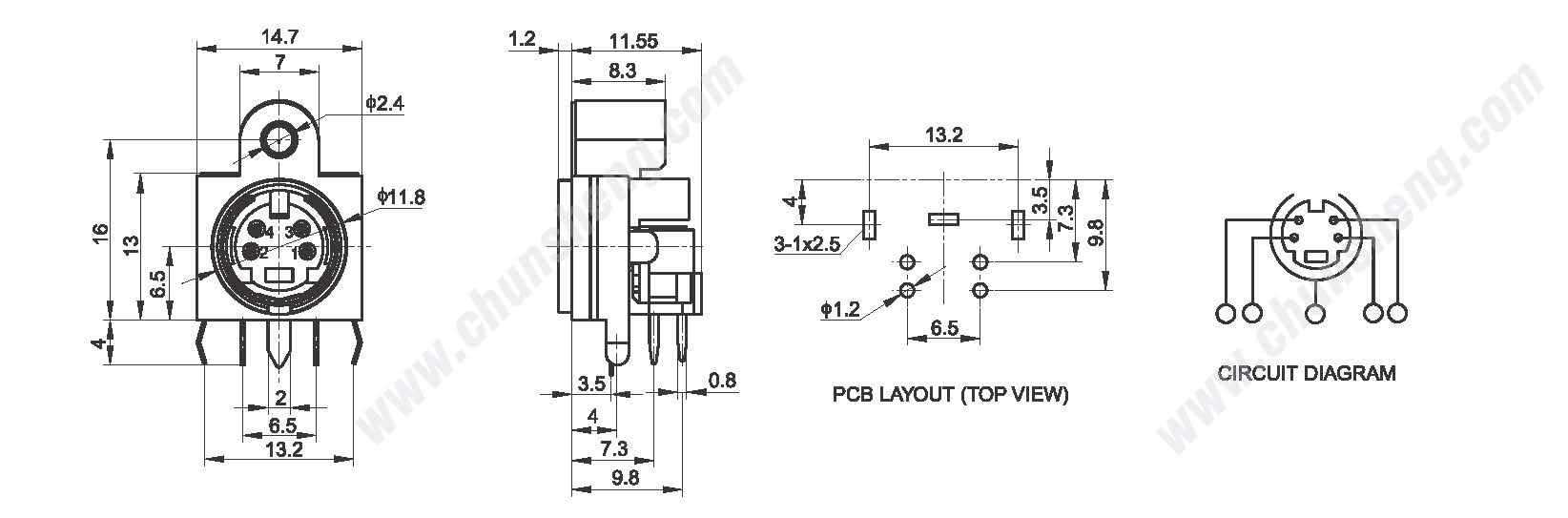

PATH IMAGE
PDF DOWNLOAD
click to download DIN-405A PDF PDF Reader:Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
