USB-115-PC18R-01
Upload Time: 2019-04-08 16:41:30
 USB-115-PC18R-01

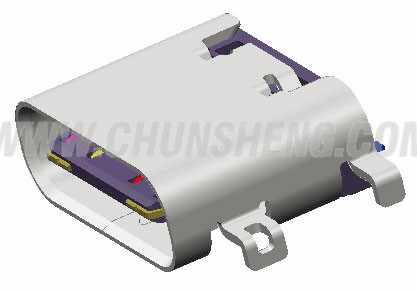

Click for larger image
SPECIFICATION
Contact Resistance≤40mΩ
Insulation Resistance≥100MΩ
Withstand Voltage100V AC/minute
Current Rating5A MAX. FOR VBUS &GND
0.5A FOR OTHER PINS.
Temperature Range-30℃~+85℃
Insertion Force5~20N
拨 出 力8~20N
Life10000 Cycles

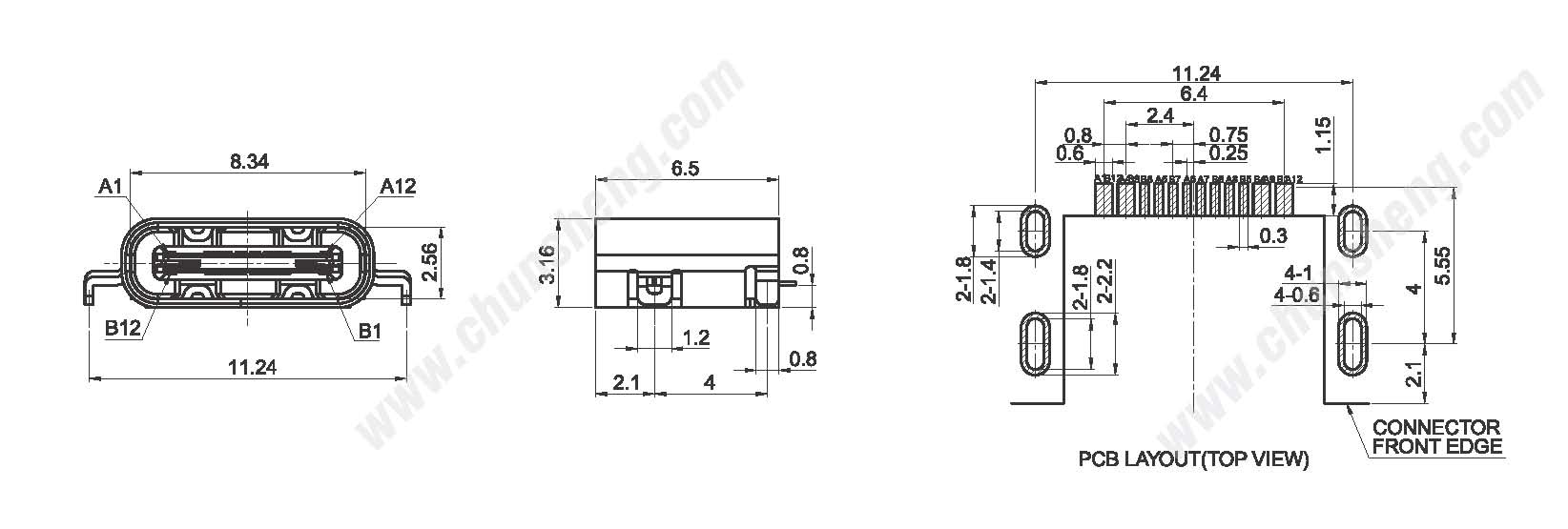

PATH IMAGE
PDF DOWNLOAD
click to download USB-115-PC18R-01 PDF PDF Reader:Official Download
