BT-304RF-01-CHUNSHENG ELECTRONICS

Product Type
New Porducts
Flash Show

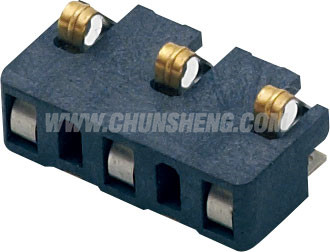

BT-304RF-01

Upload Time: 2019-04-08 16:45:55

Click for larger image

SPECIFICATION

Contact Resistance	≤20mΩ
Insulation Resistance	≥100MΩ
Withstand Voltage	250V AC/minute
Rated Load	DC 12V 5A
Frequency Range	0~6GHz
Temperature Range	-25℃～+85℃
Insertion and Extraction Force	2N～10N
Life	10000 Cycles

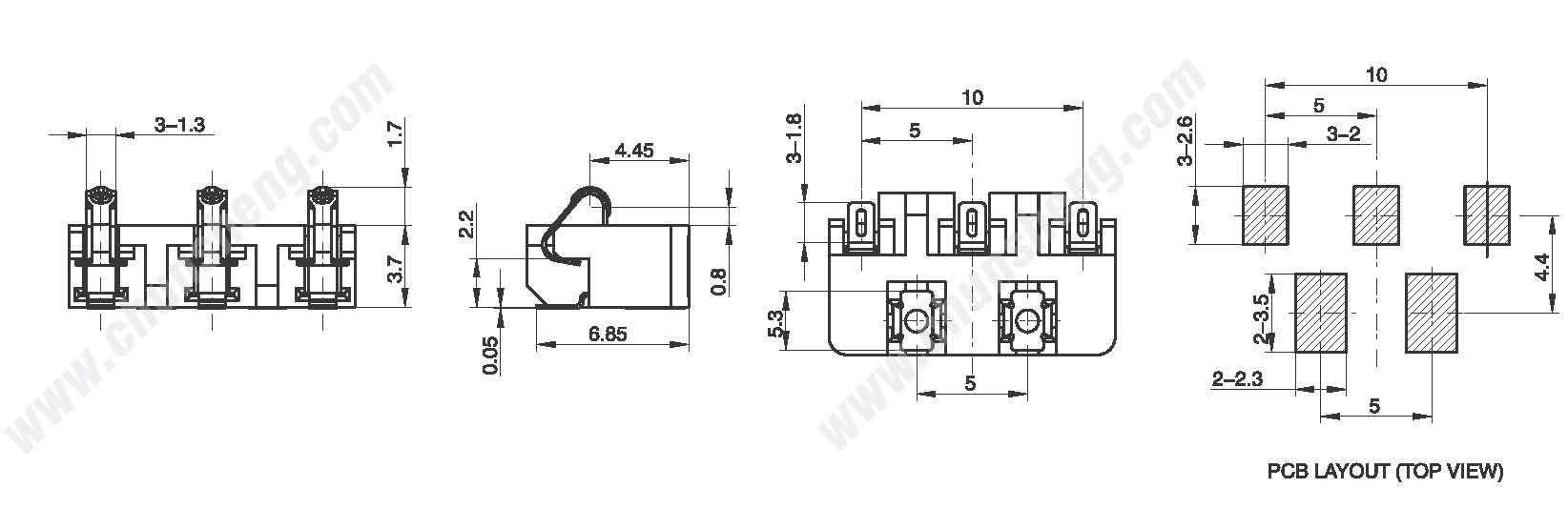

PATH IMAGE

PDF DOWNLOAD

click to download BT-304RF-01 PDF

PDF Reader：Official Download

Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
