USB3.1 -005 -PC11R -02
Upload Time: 2019-04-08 16:41:30
USB3.1-005-PC11R-02

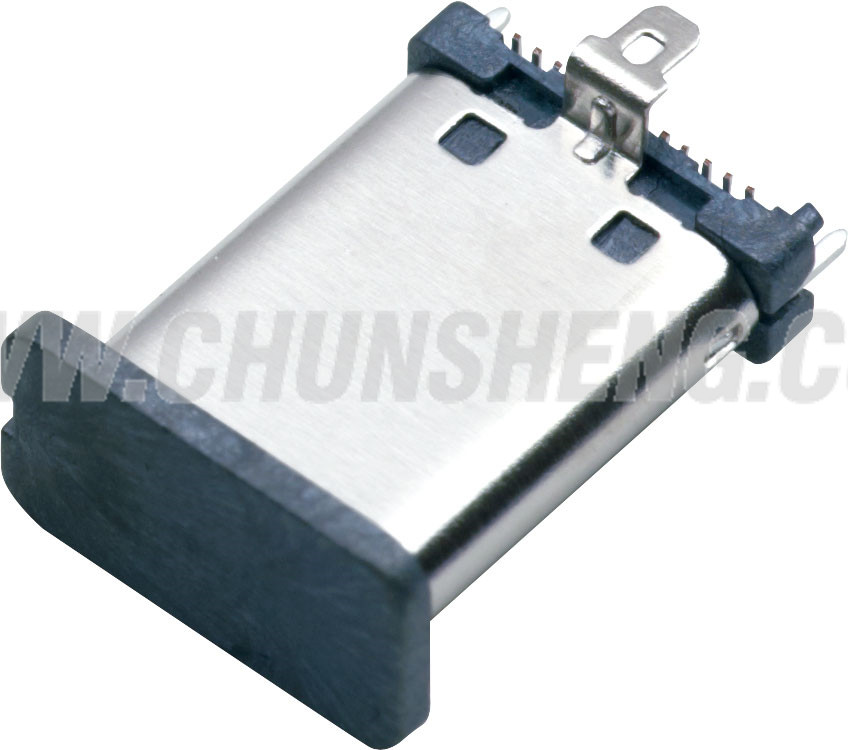

Click for larger image
SPECIFICATION
Contact Resistance≤40mΩ
Insulation Resistance≥100MΩ
Withstand Voltage100V AC/minute
Current Rating5A MAX. FOR VBUS &GND
0.5A FOR OTHER PINS.
Temperature Range-30℃~+85℃
Insertion Force5~20N
拨 出 力8~20N
Life10000 Cycles

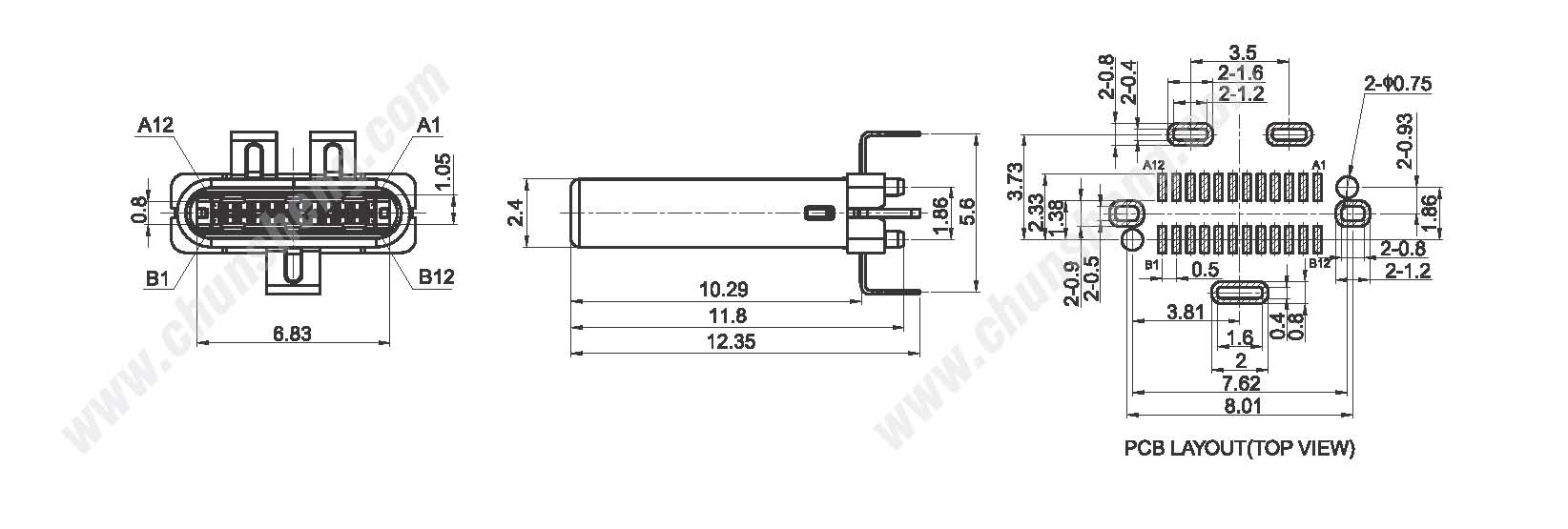

PATH IMAGE
PDF DOWNLOAD
click to download USB3.1-005-PC11R-02 PDF PDF Reader:Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
