| KFC-A07-TFH7.3-Φ1(Φ2)-D |
| Upload Time: 2019-04-08 16:36:31 |

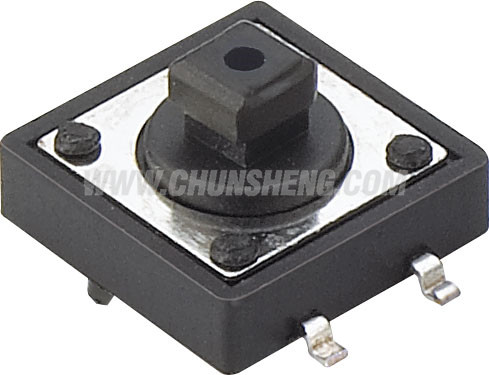

-d-2.jpg "KFC-A07-TFH7.3-Φ1(Φ2)-D")
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤100mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 250V AC/minute | | Rated Load | 12V DC 0.5A | | Temperature Range | -20℃～+70℃ | | Operating force | Customer Requirements | | Life | 50000 Cycles
|
|
|
|
|
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As. |
|
|
|
