CT3-05M-02
Upload Time: 2019-04-08 16:17:58

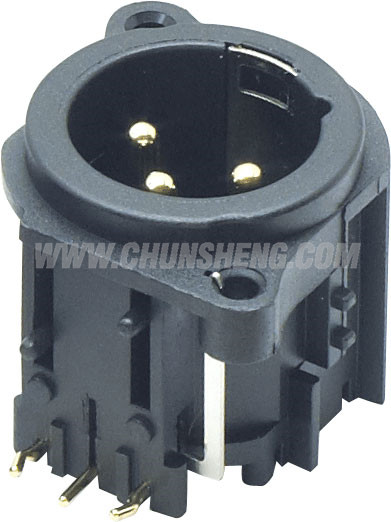

CT3-05M-02
Click for larger image
SPECIFICATION
Contact Resistance≤0.3Ω
Insulation Resistance≥100MΩ
Withstand Voltage1500V,AC/minute
Temperature Range-30℃～+80℃
Rated Load50V AC 6A
Insertion and Extraction Force10N～50N
Terminal Strength≥30N
Life5000 Cycles

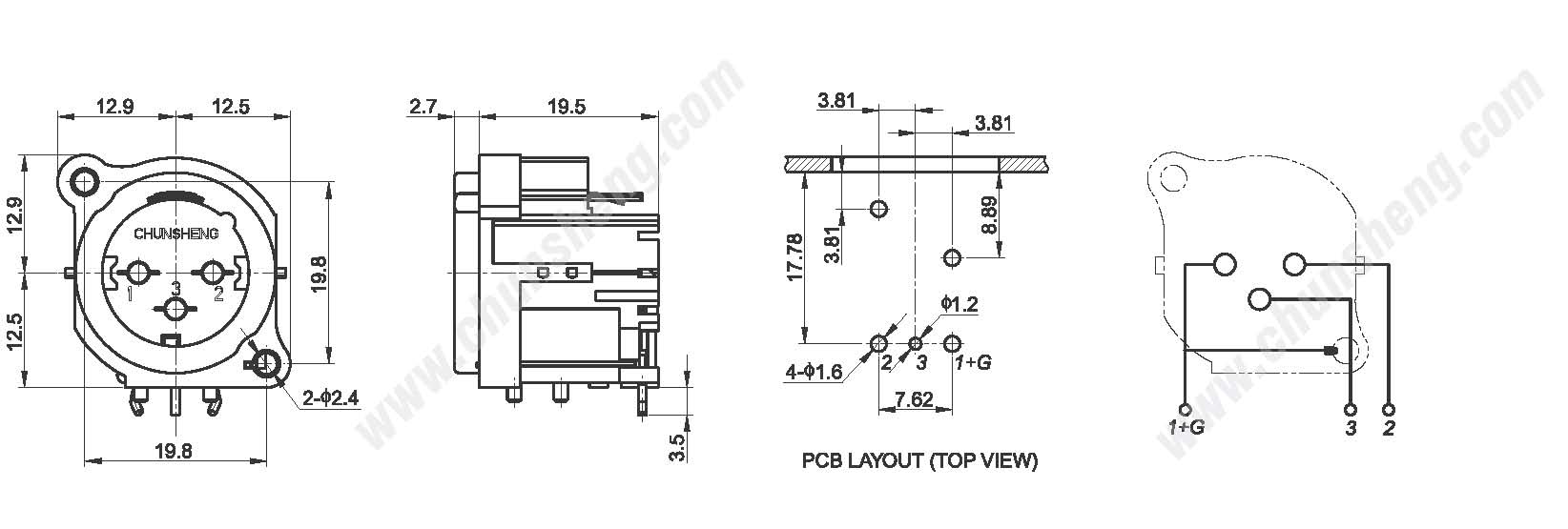

PATH IMAGE
PDF DOWNLOAD
click to download CT3-05M-02 PDF PDF Reader：Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
