HP-14T
Upload Time: 2019-04-08 16:30:19

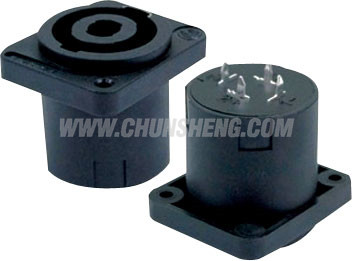

 HP-14T
Click for larger image
SPECIFICATION
Contact Resistance≤0.01Ω
Insulation Resistance≥2GΩ
Withstand Voltage2.7KV
Rated Load250V AC
Temperature Range-25℃~+70℃
Durability5000 Cycles

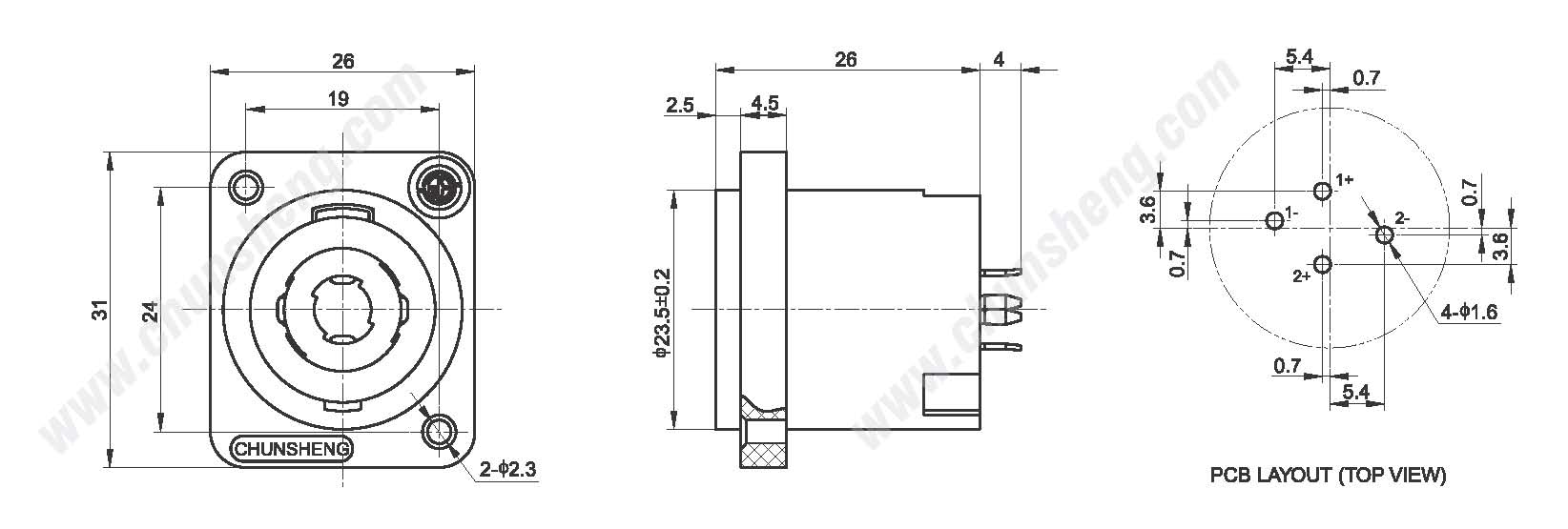

PATH IMAGE
PDF DOWNLOAD
click to download HP-14T PDF PDF Reader:Official Download
