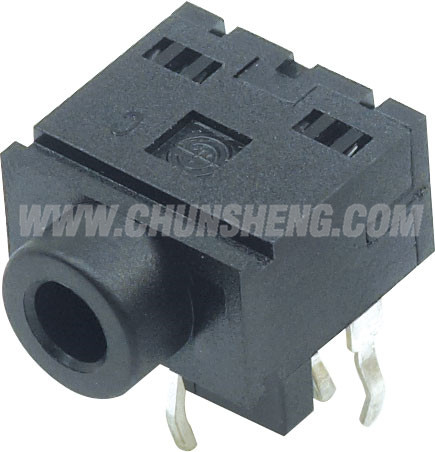

| PJ-327 |
| Upload Time: 2019-04-08 16:31:26 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤30mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 500V AC/minute | | Temperature Range | -25℃～+70℃ | | Rated Load | 30V DC 0.3A | | Insertion and Extraction Force | 3N～30N | | Terminal Strength | 5N Min | | Life | 5000 Cycles
|
|
|
|
|
