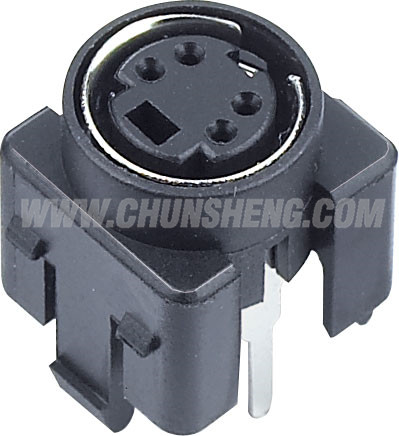

| DIN-414H |
| Upload Time: 2019-04-08 16:40:07 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤30mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 500V AC/minute | | Rated Load | 30V DC 0.3A | | Terminal Strength | ≥5N | | Temperature Range | -25℃～+70℃ | | Insertion and Extraction Force | 3N～30N(for no switch)
4N～40N(for switch) | | Terminal Strength | ≥5N | | Life | 5000 Cycles |
|
|
|
|
