USB-A-126
Upload Time: 2019-04-08 16:40:48
 USB-A-126
Click for larger image
SPECIFICATION
Contact Resistance≤0.03
Insulation Resistance≥1000MΩ
Withstand Voltage500V AC/minute
Rated Load30V DC 1.5A
Temperature Range-25℃~+85℃
Insertion Force≤35N
拨 出 力≥10N
Life1500 Cycles

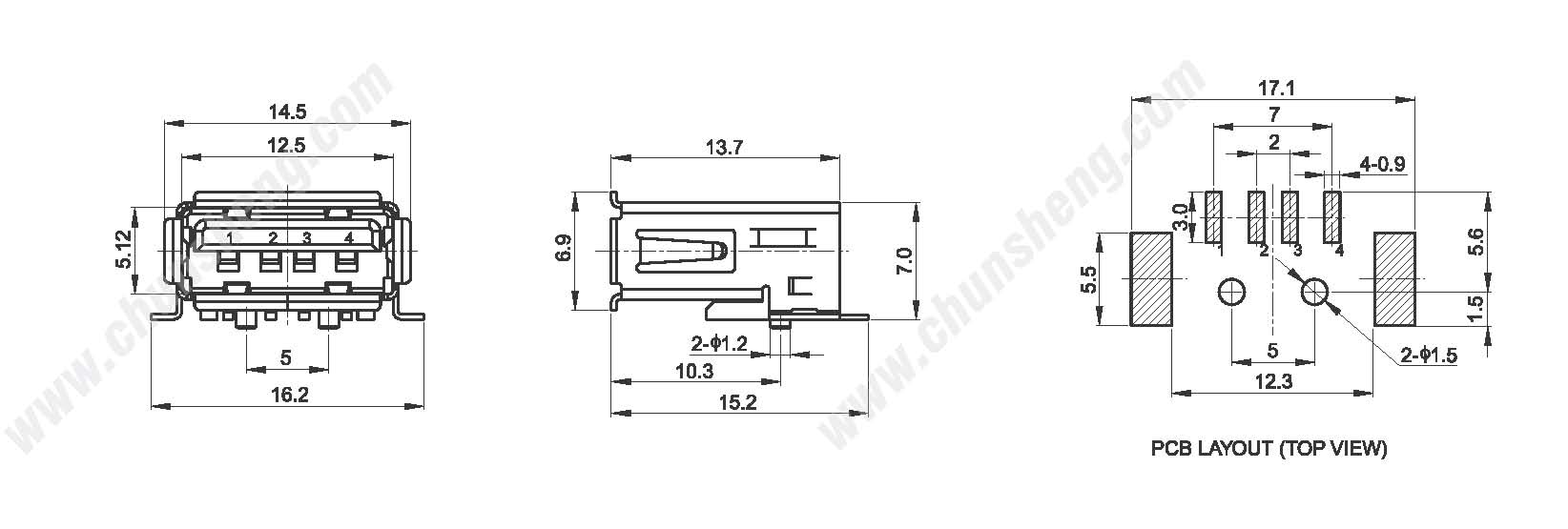

PATH IMAGE
PDF DOWNLOAD
click to download USB-A-126 PDF PDF Reader:Official Download
