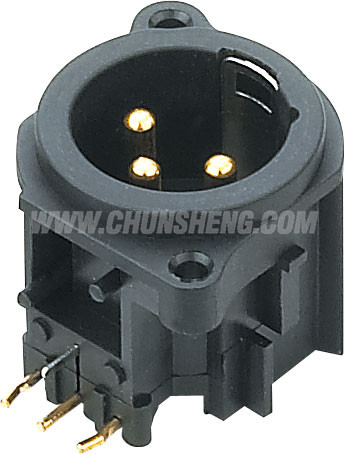

CT3-05M
Upload Time: 2019-04-08 16:17:58
Click for larger image
SPECIFICATION
Contact Resistance
≤0.3Ω
Insulation Resistance
≥100MΩ
Withstand Voltage
1500V,AC/minute
Temperature Range
-30℃～+80℃
Rated Load
50V AC 6A
Insertion and Extraction Force
10N～50N
Terminal Strength
≥30N
Life
5000 Cycles

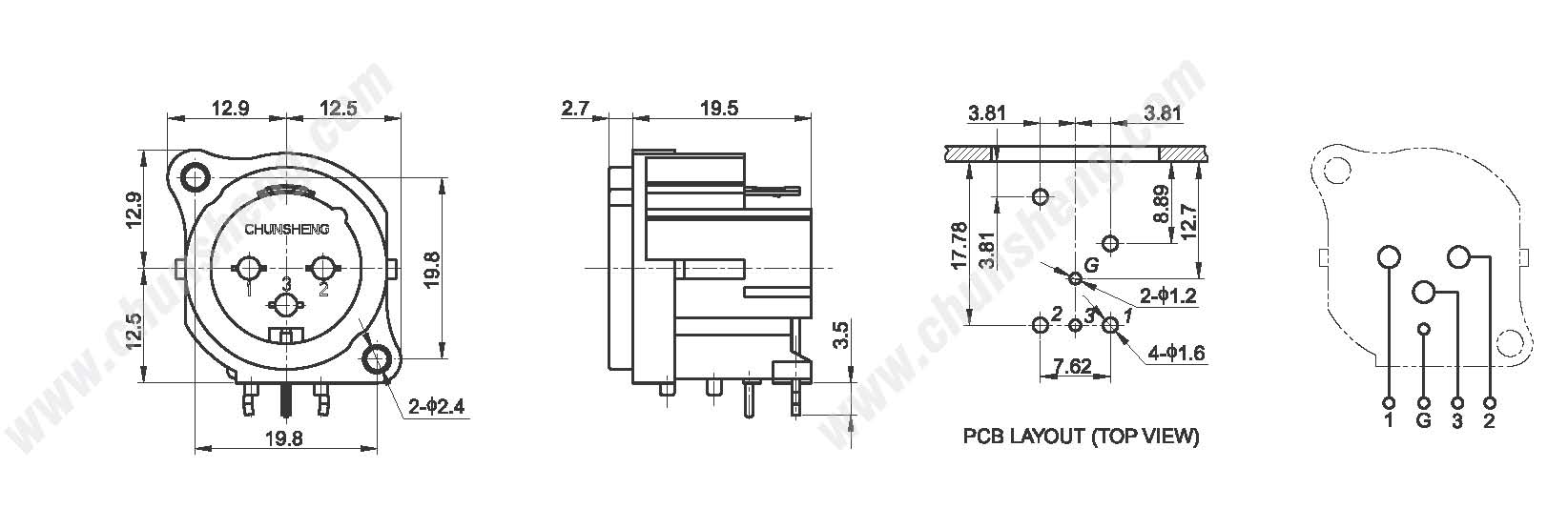

PATH IMAGE
PDF DOWNLOAD
Click to download product details
click to download CT3-05M
PDF
PDF Reader：
Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
Prev：
CT3-05HM-03
Next：
CT3-05M-01
