DC-005A
Upload Time: 2019-04-08 16:38:49

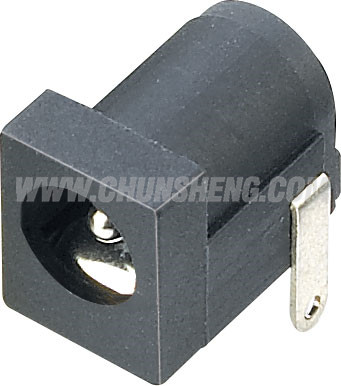

 DC-005A
Click for larger image
SPECIFICATION
Contact Resistance≤0.3Ω
Insulation Resistance≥100MΩ
Withstand Voltage500V,AC/minute
Rated Load30V DC 1A
Temperature Range-25℃~+70℃
Insertion and Extraction Force

3N~20N

Terminal Strength5N Min
Life5000 Cycles

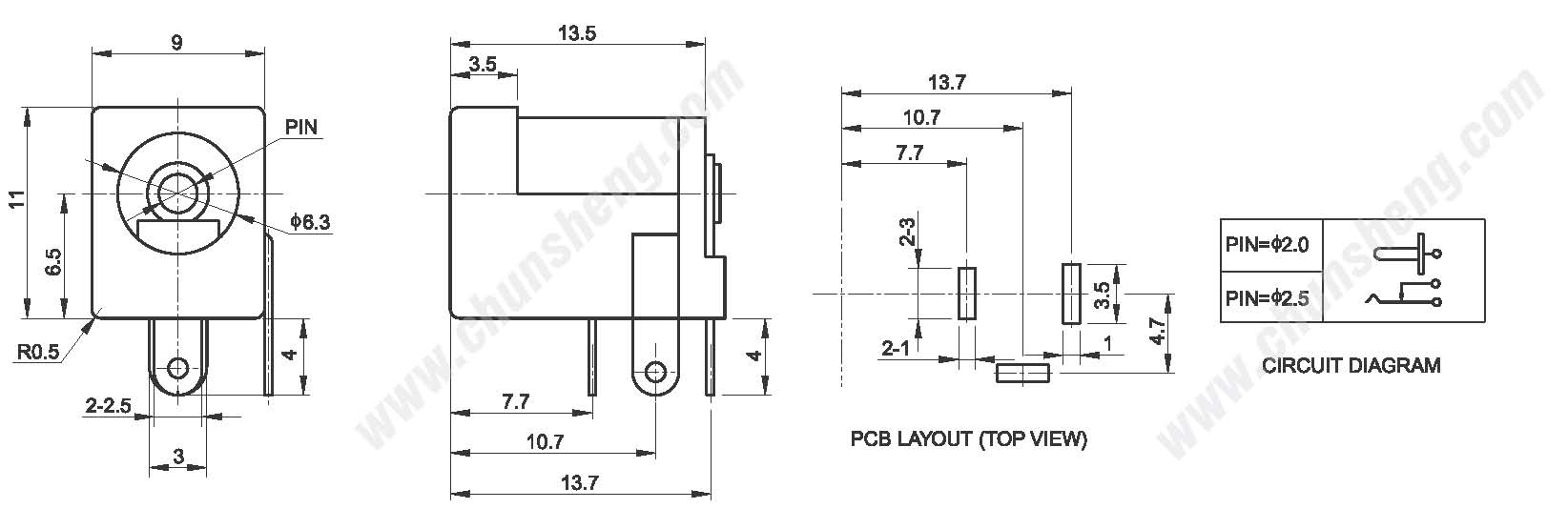

PATH IMAGE
