CT3-05HM-01

Upload Time: 2019-04-08 16:17:58

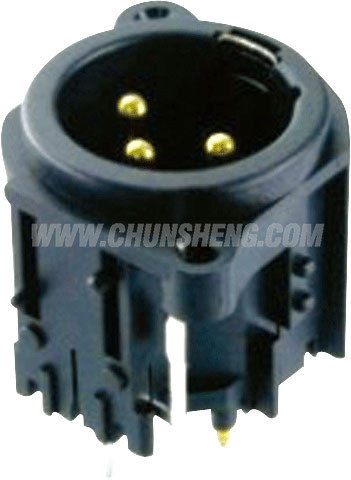

Click for larger image

SPECIFICATION

Contact Resistance	≤0.3Ω
Insulation Resistance	≥100MΩ
Withstand Voltage	1500V,AC/minute
Temperature Range	-30℃～+80℃
Rated Load	50V AC 6A
Insertion and Extraction Force	10N～50N
Terminal Strength	≥30N
Life	5000 Cycles

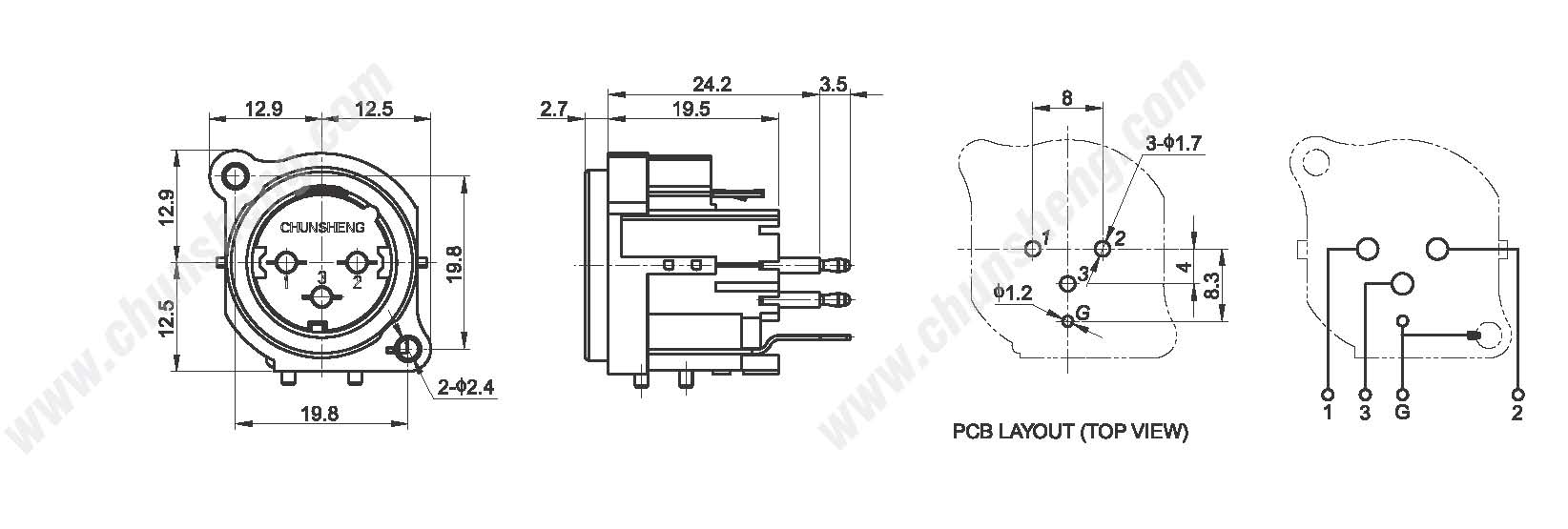

PATH IMAGE

PDF DOWNLOAD

click to download CT3-05HM-01 PDF

PDF Reader：Official Download

Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.

Prev： CT3-05HM Next： CT3-05HM-02
