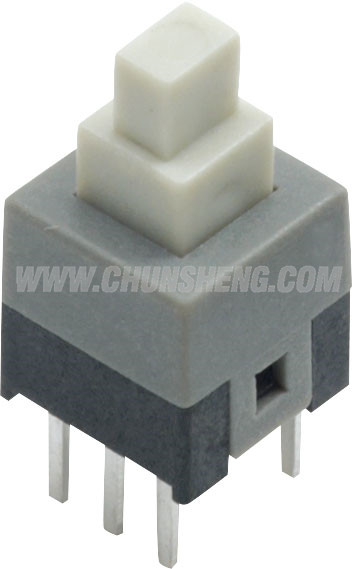

PS-D22E07NLS
Upload Time: 2019-04-08 16:43:35
 PS-D22E07NLS
Click for larger image
SPECIFICATION
Contact Resistance≤30mΩ
Insulation Resistance≥100MΩ
Withstand Voltage500V,AC/minute
Rated Load12V DC 0.1A
Temperature Range-25℃~+70℃
Operating force

3±0.8N

Terminal Strength≥5N
Life10000 Cycles

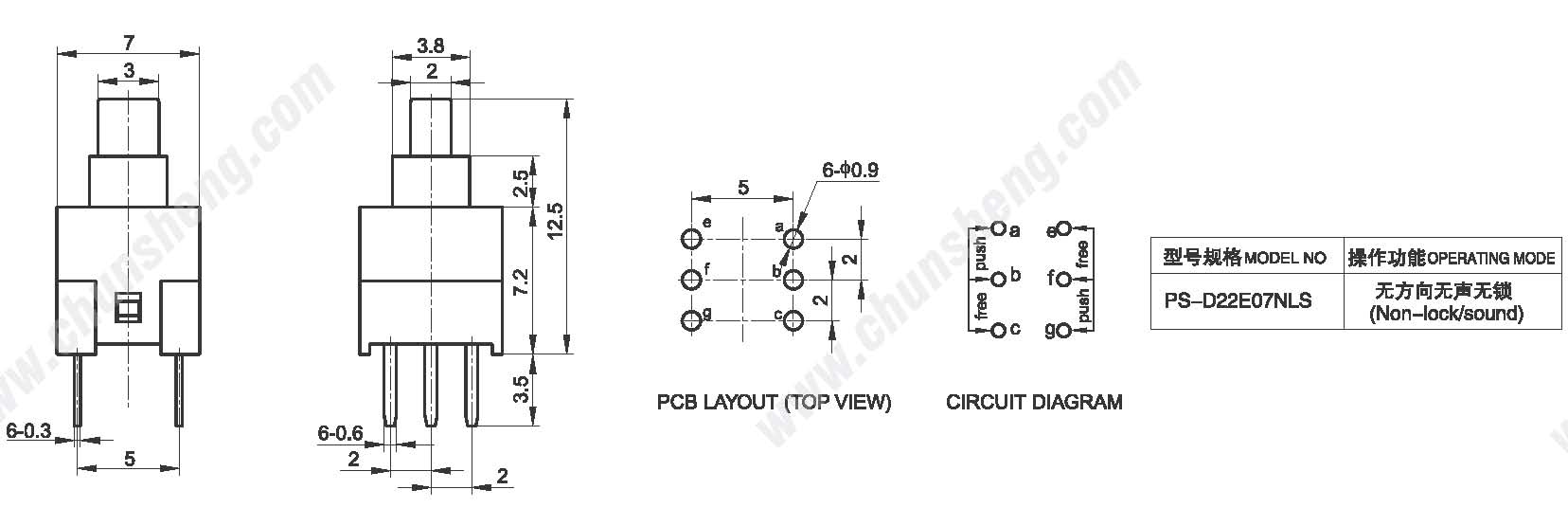

PATH IMAGE
PDF DOWNLOAD
click to download PS-D22E07NLS PDF PDF Reader:Official Download
