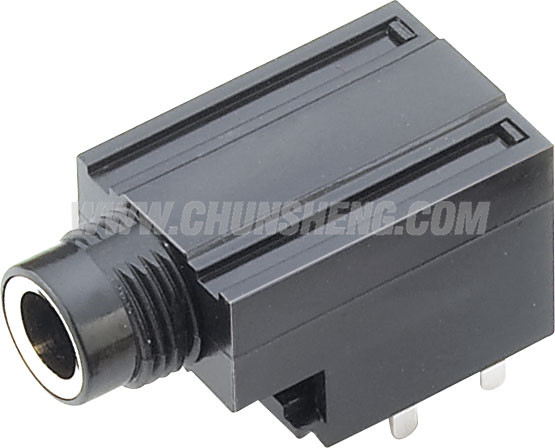

| PJ-605A |
| Upload Time: 2019-04-08 16:33:35 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤0.03Ω | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 500V AC/minute | | Temperature Range | -25℃～+70℃ | | Rated Load | 50V DC 0.5A | | Insertion and Extraction Force | 5N～40N | | Terminal Strength | 10N Min | | Life | 5000 Cycles |
|
|
|
|
