PJ-3186S
Upload Time: 2019-04-08 16:31:26

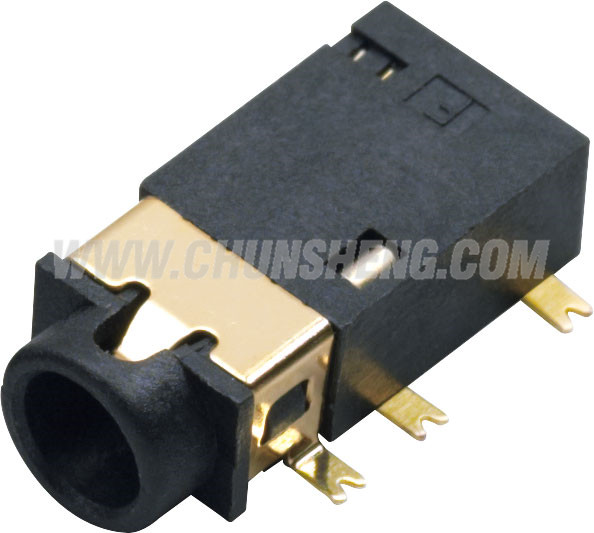

 PJ-3186S
Click for larger image
SPECIFICATION
Contact Resistance≤30mΩ
Insulation Resistance≥100MΩ
Withstand Voltage 500V AC/minute
Temperature Range-25℃~+70℃
Rated Load30V DC 0.3A
Insertion and Extraction Force3N~30N
Terminal Strength5N Min
Life5000 Cycles

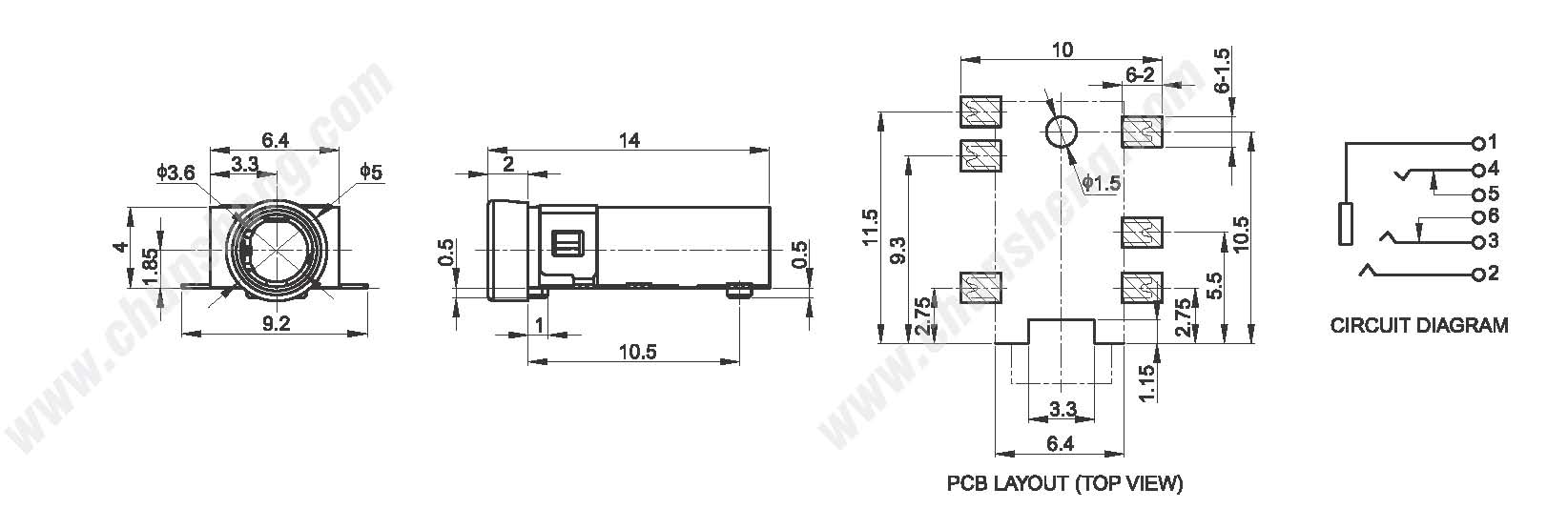

PATH IMAGE
PDF DOWNLOAD
click to download PJ-3186S PDF PDF Reader:Official Download
