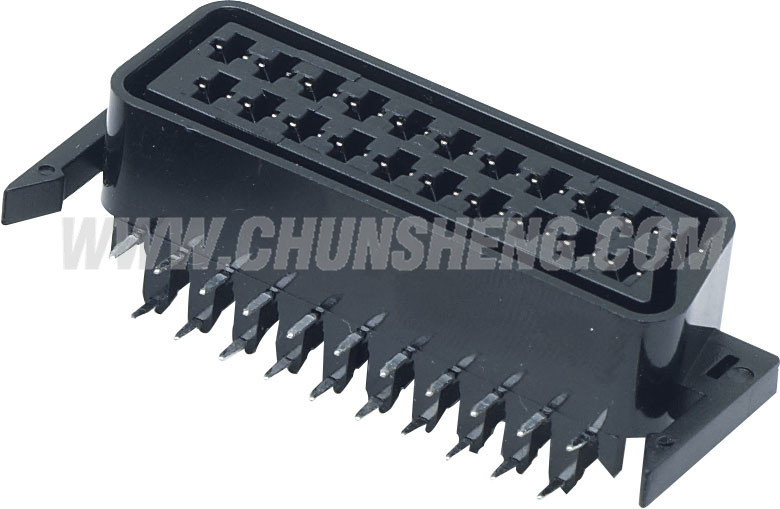

| CS-116B-EP |
| Upload Time: 2019-04-08 16:39:39 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤25mΩ | | Insulation Resistance | 100MΩMin | | Withstand Voltage | 500V,AC/minute | | Rated Load | 35V DC 1.5A | | Temperature Range | -25℃～+70℃ | | Insertion and Extraction Force | 0.8～20N | | Durability | 1000 Cycles |
|
|
|
|
