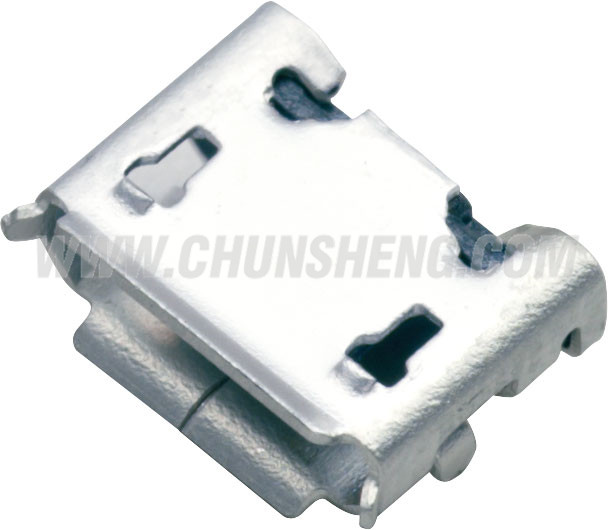

WUSB111-PB566R
Upload Time: 2019-04-08 16:42:06
Click for larger image
SPECIFICATION
Contact Resistance
≤30mΩ
Insulation Resistance
≥1000MΩ
Withstand Voltage
100V AC/minute
Rated Load
30V DC 1A
Temperature Range
-25℃～+85℃
Insertion Force
≤35N
Extraction Force
≥8N
Life
10000 Cycles

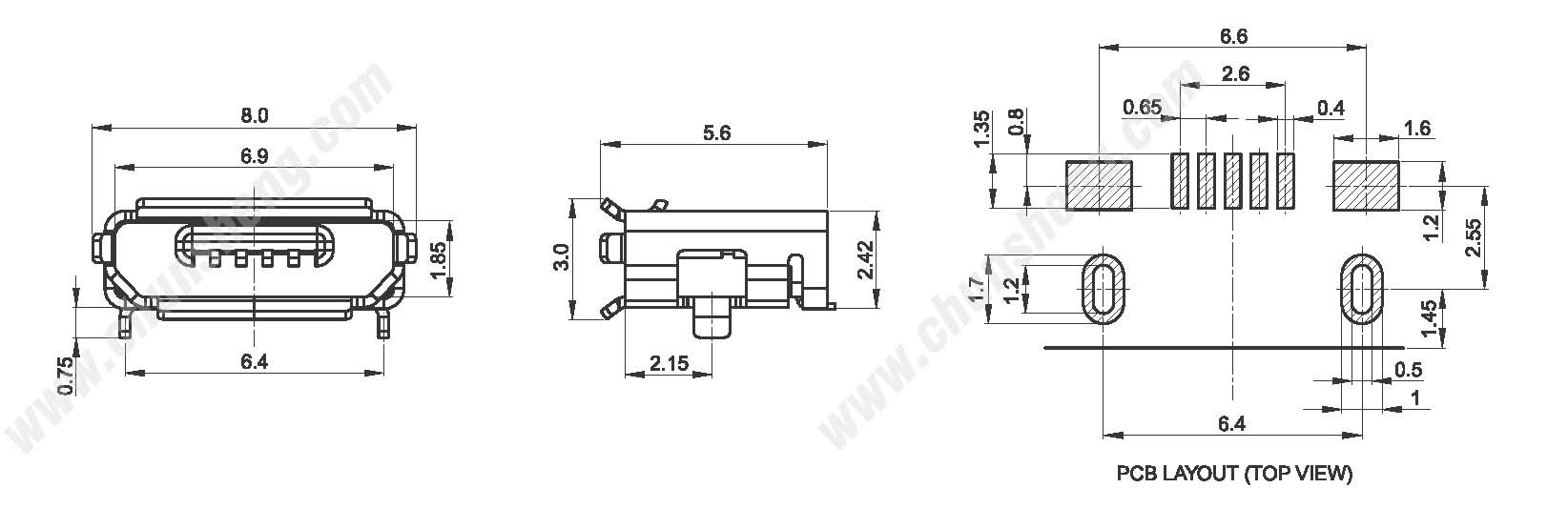

PATH IMAGE
PDF DOWNLOAD
Click to download product details
click to download WUSB111-PB566R
