URF001-S04R-01
Upload Time: 2019-04-08 16:45:30
 URF001-S04R-01
Click for larger image
SPECIFICATION
Contact Resistance≤25mΩ
Insulation Resistance≥500MΩ
Rated Load60V AC
Frequency Range0-6GHz
Withstand Voltage200V AC/minute
Temperature Range-40℃~+90℃
Durability100 Cycles

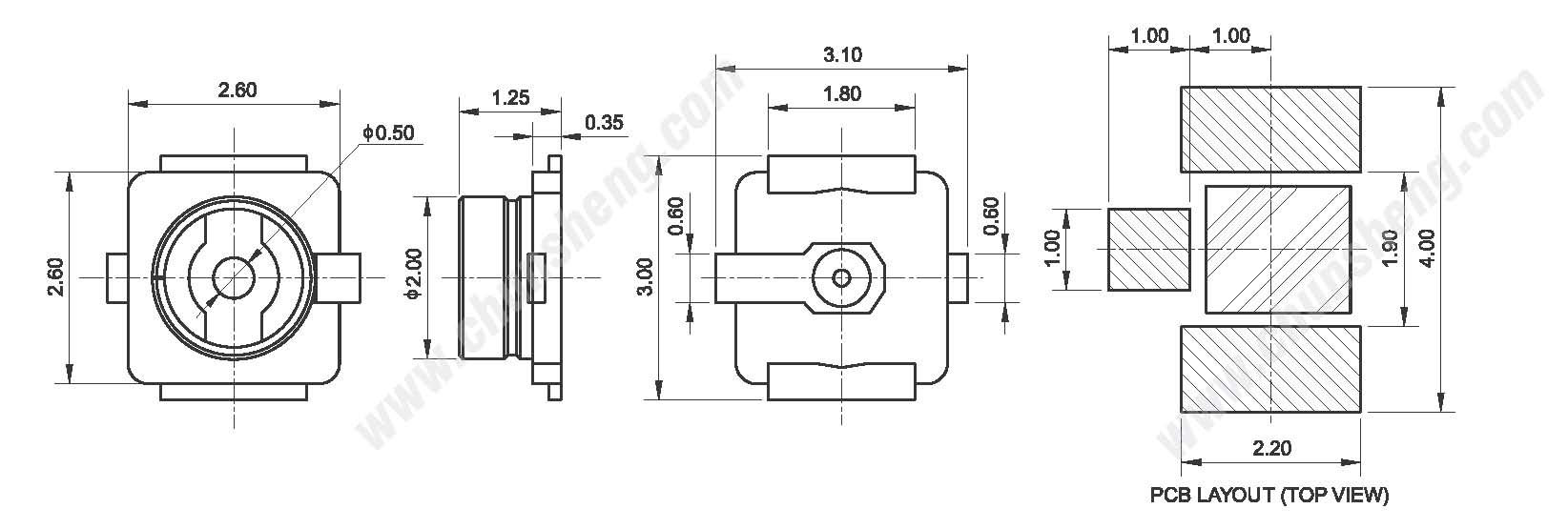

PATH IMAGE
PDF DOWNLOAD
click to download URF001-S04R-01 PDF PDF Reader:Official Download
