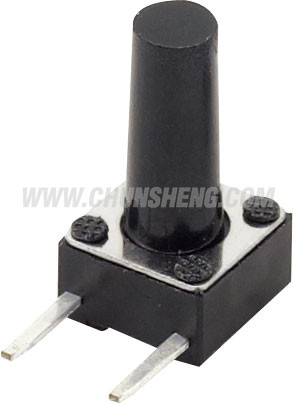

KFC-A06-2D-AHn
Upload Time: 2019-04-08 16:36:31
 KFC-A06-2D-AHn
Click for larger image
SPECIFICATION
Contact Resistance≤100mΩ
Insulation Resistance≥100MΩ
Withstand Voltage250V AC/minute
Rated Load12V DC 0.5A
Temperature Range-20℃~+70℃
Operating force

Customer Requirements

Life50000 Cycles

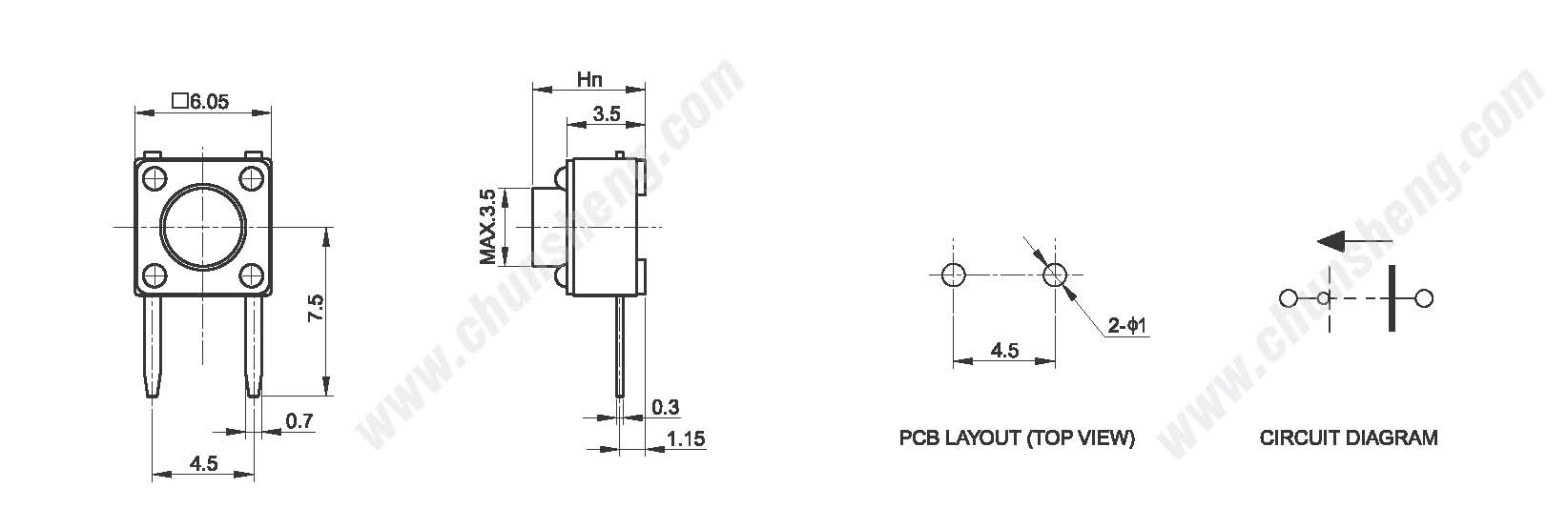

PATH IMAGE
