USB3111-DA69R
Upload Time: 2019-04-08 16:40:48

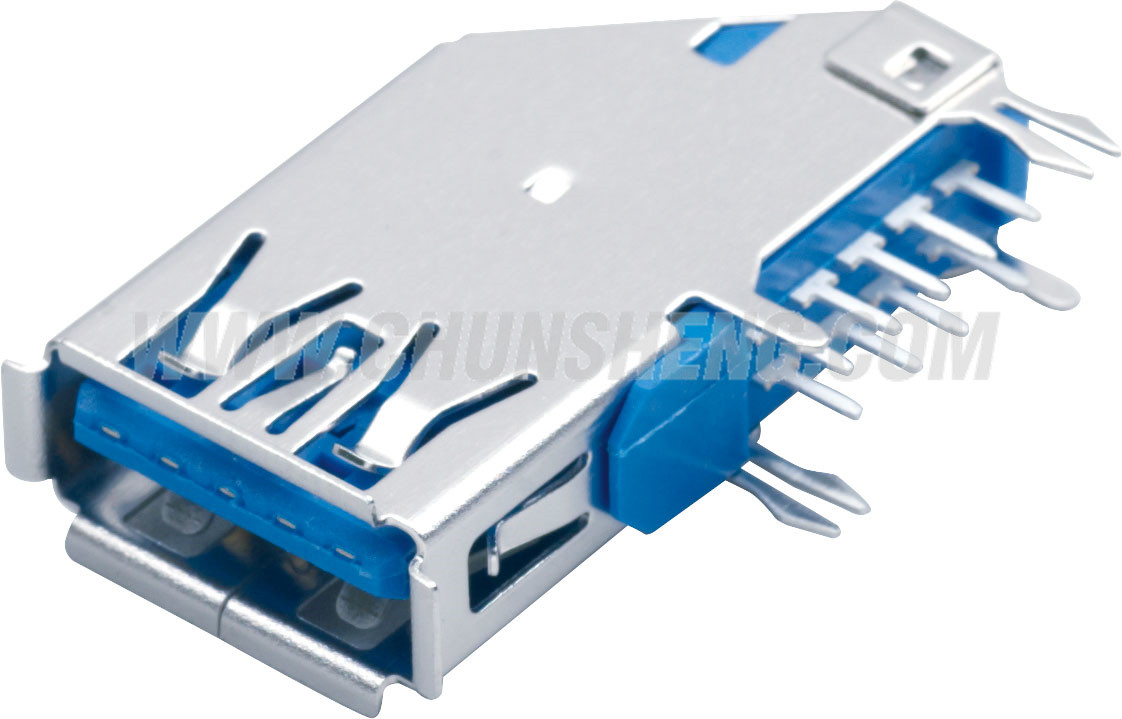

 USB3111-DA69R
Click for larger image
SPECIFICATION
Contact Resistance≤0.03
Insulation Resistance≥1000MΩ
Withstand Voltage500V AC/minute
Rated Load30V DC 1.5A
Temperature Range-25℃~+85℃
Insertion Force≤35N
拨 出 力≥10N
Life1500 Cycles

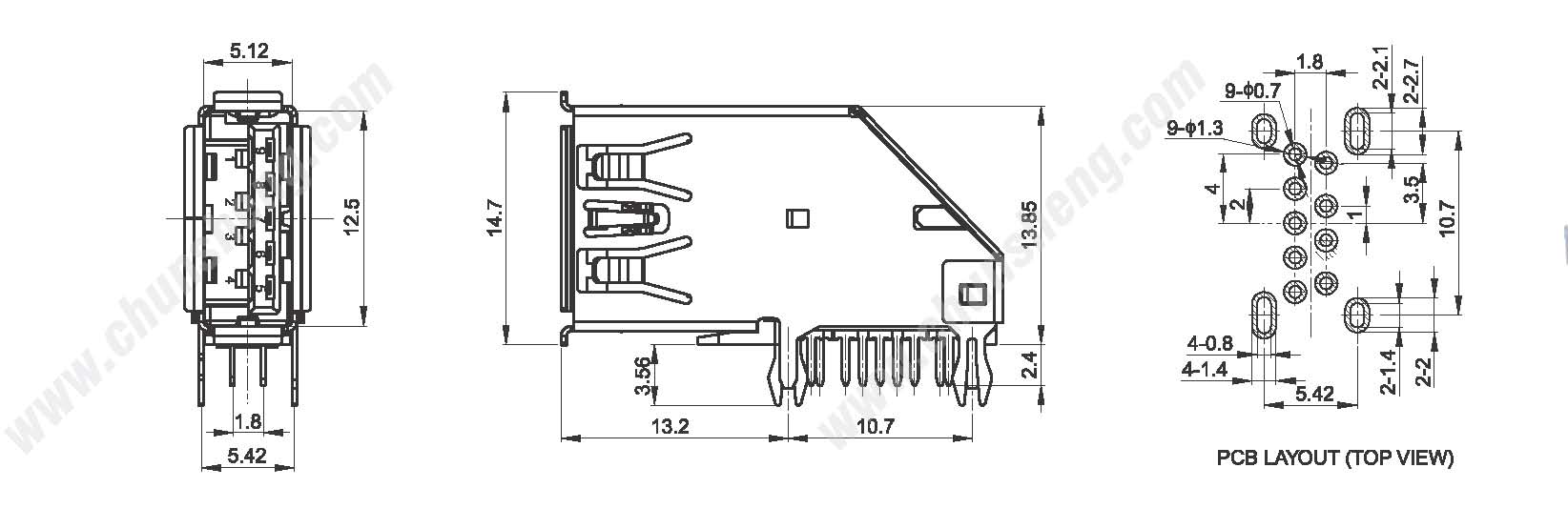

PATH IMAGE
PDF DOWNLOAD
click to download USB3111-DA69R PDF PDF Reader:Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
