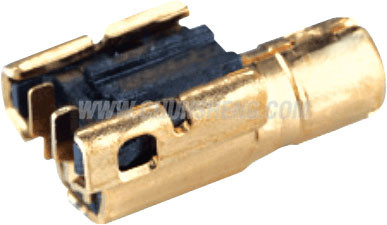

| SRF111-SS43R-01 |
| Upload Time: 2019-04-08 16:45:30 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤25mΩ | | Insulation Resistance | ≥500MΩ | | Rated Load | 60V AC | | Frequency Range | 0-6GHz | | Withstand Voltage | 200V AC/minute | | Temperature Range | -40℃～+90℃ | | Durability | 100 Cycles |
|
|
|
|
