CT3-04HFP-A
Upload Time: 2019-04-08 16:17:58
CT3-04HFP-A
Click for larger image
SPECIFICATION
Contact Resistance≤0.3Ω
Insulation Resistance≥100MΩ
Withstand Voltage1500V,AC/minute
Temperature Range-30℃～+80℃
Rated Load50V AC 6A
Insertion and Extraction Force10N～50N
Terminal Strength≥30N
Life5000 Cycles

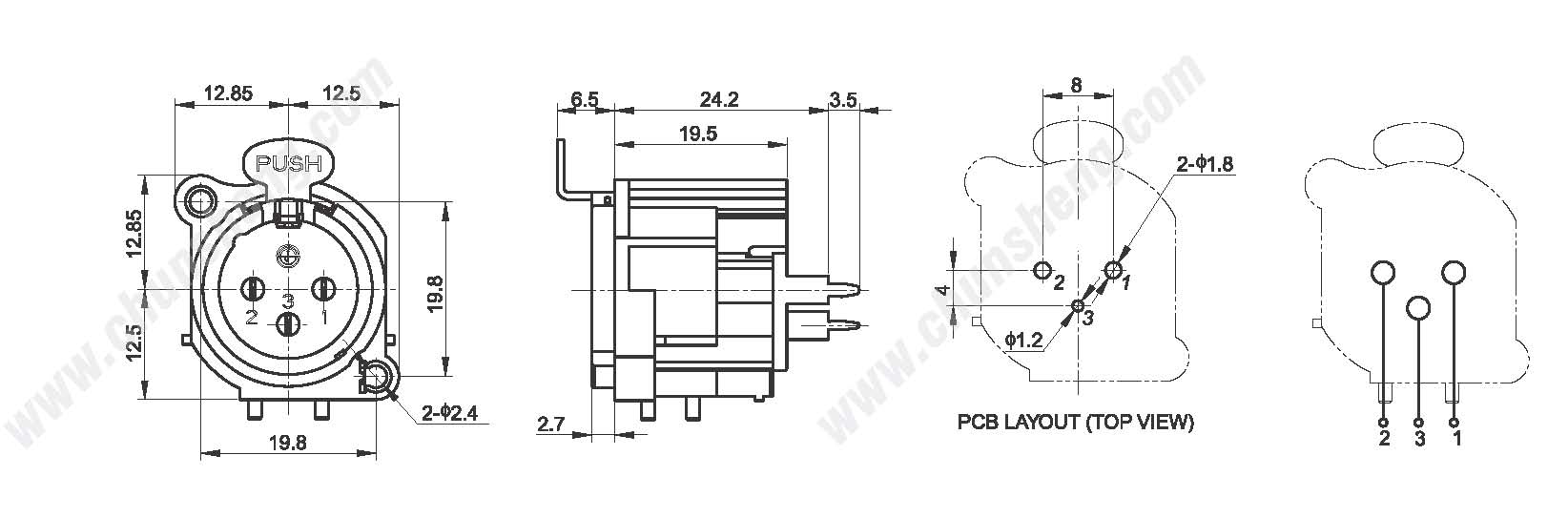

PATH IMAGE
PDF DOWNLOAD
click to download CT3-04HFP-A PDF PDF Reader：Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
Prev： CT3-04HFP

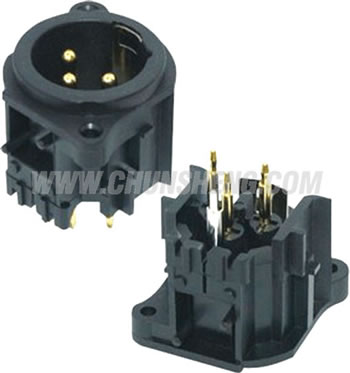

Next： CT3-05HM
