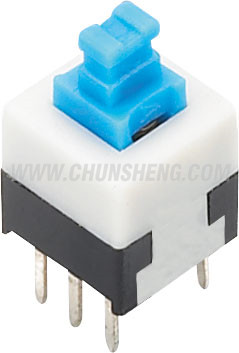

| ps-22E08L |
| Upload Time: 2019-04-08 16:43:35 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤30mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 500V,AC/minute | | Rated Load | 12V DC 0.1A | | Temperature Range | -25℃～+70℃ | | Operating force | 3±0.8N | | Terminal Strength | ≥5N | | Life | 10000 Cycles
|
|
|
|
|
