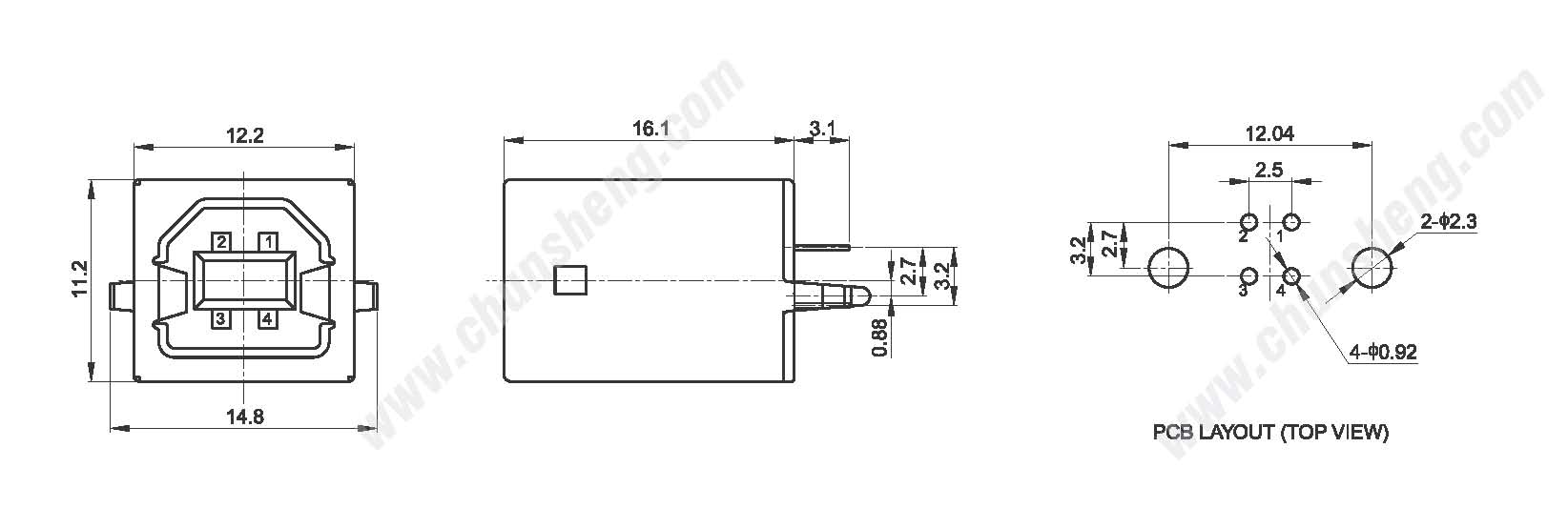

| USB-B-1105 |
| Upload Time: 2019-04-08 16:40:48 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤0.03 | | Insulation Resistance | ≥1000MΩ | | Withstand Voltage | 500V AC/minute | | Rated Load | 30V DC 1.5A | | Temperature Range | -25℃～+85℃ | | Insertion Force | ≤35N | | 拨 出 力 | ≥10N | | Life | 1500 Cycles
|
|
|
|
|
