KFC-024L-2BH7
Upload Time: 2019-04-08 16:36:31
 KFC-024L-2BH7
Click for larger image
SPECIFICATION
Contact Resistance≤100mΩ
Insulation Resistance≥100MΩ
Withstand Voltage250V AC/minute
Rated Load12V DC 0.5A
Temperature Range-20℃~+70℃
Operating force

Customer Requirements

Life50000 Cycles

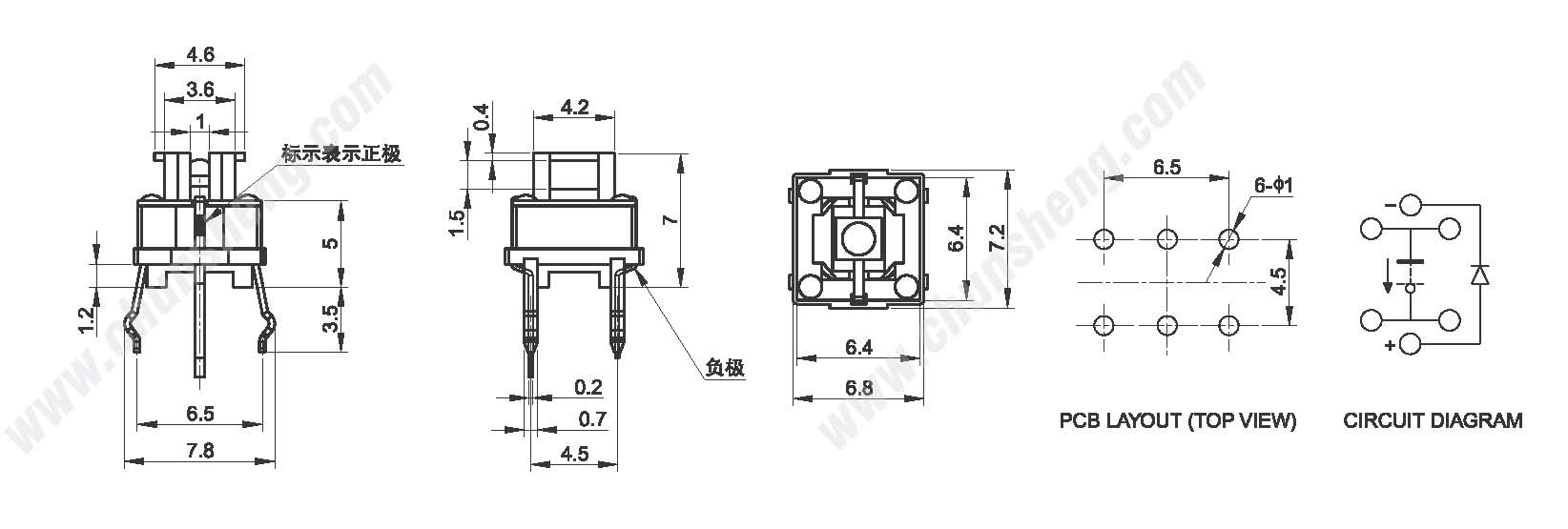

PATH IMAGE
PDF DOWNLOAD
click to download KFC-024L-2BH7 PDF PDF Reader:Official Download
