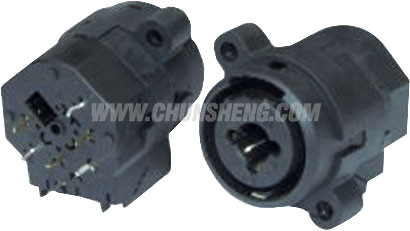

| CT-PJ-01H-07 |
| Upload Time: 2019-04-08 16:29:41 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | <10mΩ/jack:<20mΩ | | Insulation Resistance | >500MΩ | | Withstand Voltage | 1500V,AC/minute | | Temperature Range | -20℃～+65℃ | | Rated Load | 50V AC 7.5A | | Insertion and Extraction Force | XLR:5N-50N/jack:5N-55N | | Durability | 5000 Cycles |
|
|
|
|
