CT-PJ-01H-06
Upload Time: 2019-04-08 16:29:41
 CT-PJ-01H-06

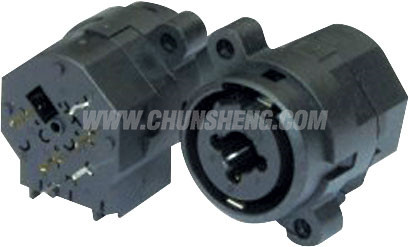

Click for larger image
SPECIFICATION
Contact Resistance<10mΩ/jack:<20mΩ
Insulation Resistance>500MΩ
Withstand Voltage1500V,AC/minute
Temperature Range-20℃~+65℃
Rated Load50V AC 7.5A
Insertion and Extraction ForceXLR:5N-50N/jack:5N-55N
Durability5000 Cycles

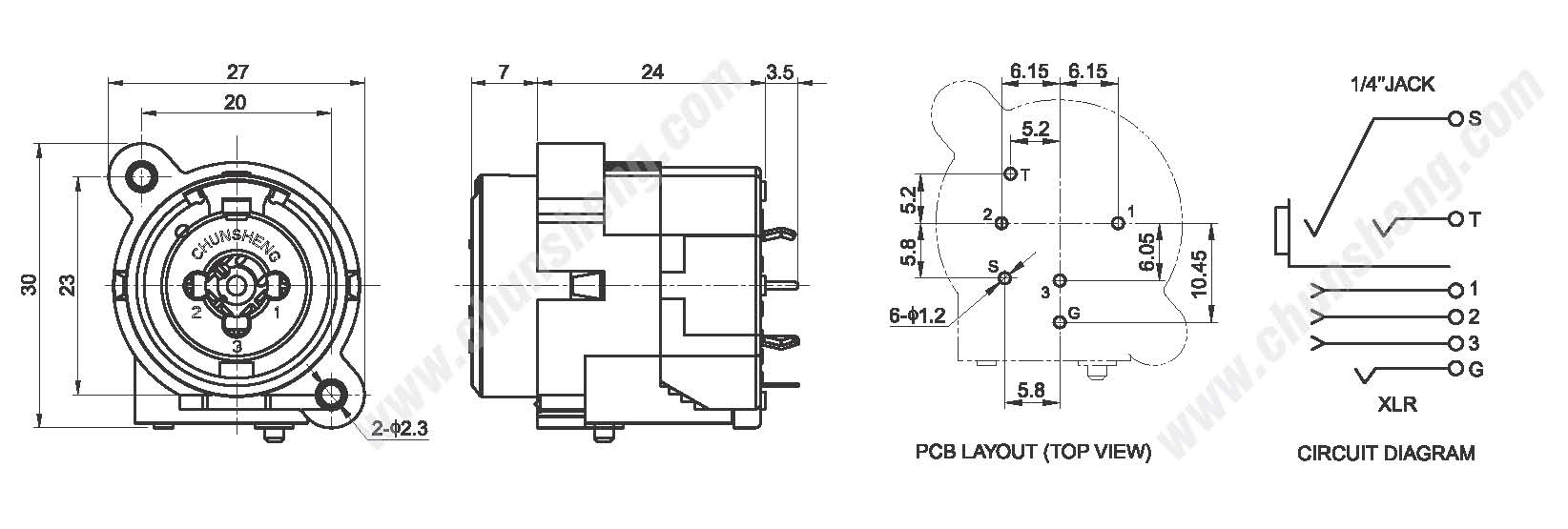

PATH IMAGE
PDF DOWNLOAD
click to download CT-PJ-01H-06 PDF PDF Reader:Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
