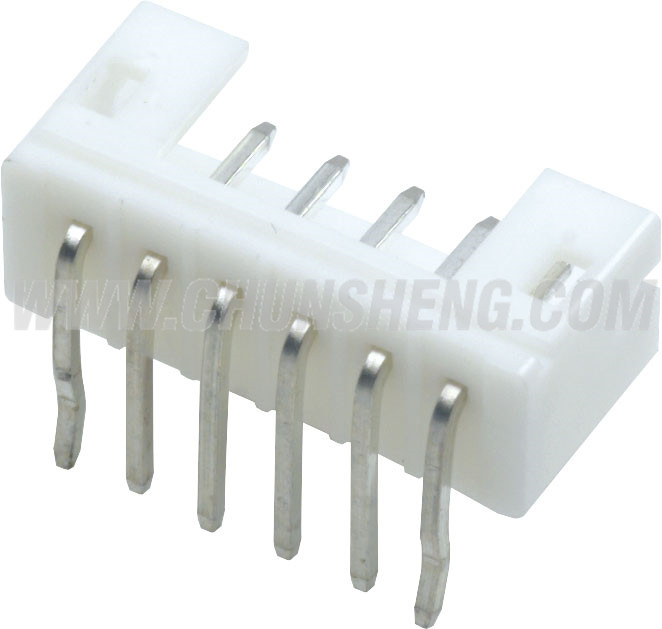

PH-nAW
Upload Time: 2019-04-08 16:44:19
Click for larger image
SPECIFICATION
Contact Resistance
≤20mΩ
Insulation Resistance
≥500MΩ
Current Rating
0.2~7A
Voltage Rating
30~250V DC/AC
Withstand Voltage
200V~1500v AC/minute
Temperature Range
-25℃～+85℃

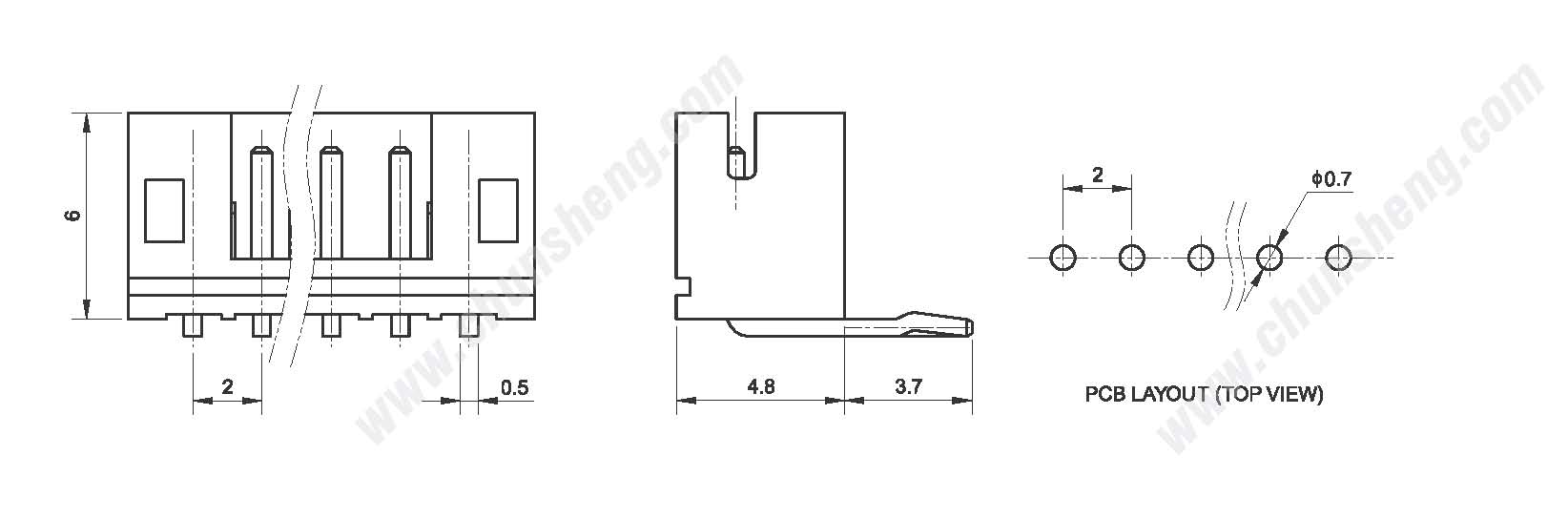

PATH IMAGE
PDF DOWNLOAD
Click to download product details
click to download PH-nAW
PDF
PDF Reader：
Official Download
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As.
Prev：
PH-nA
Next：
PH-nAWJ
