PH-nA
Upload Time: 2019-04-08 16:44:19

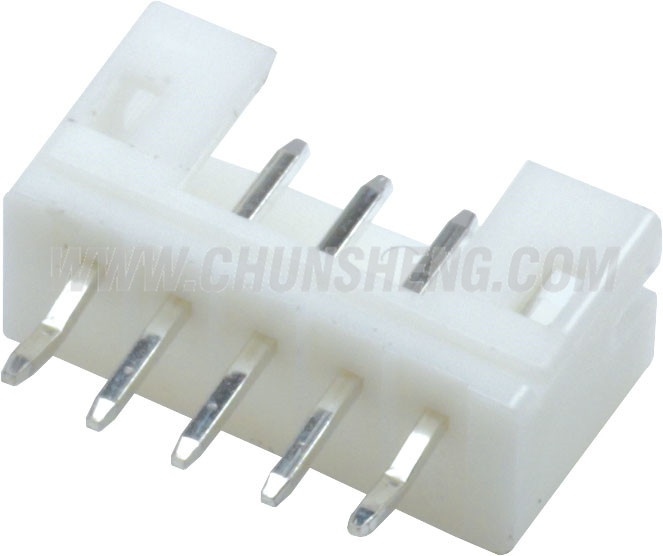

 PH-nA
Click for larger image
SPECIFICATION
Contact Resistance≤20mΩ
Insulation Resistance≥500MΩ
Current Rating0.2~7A
Voltage Rating30~250V DC/AC
Withstand Voltage200V~1500v AC/minute
Temperature Range-25℃~+85℃

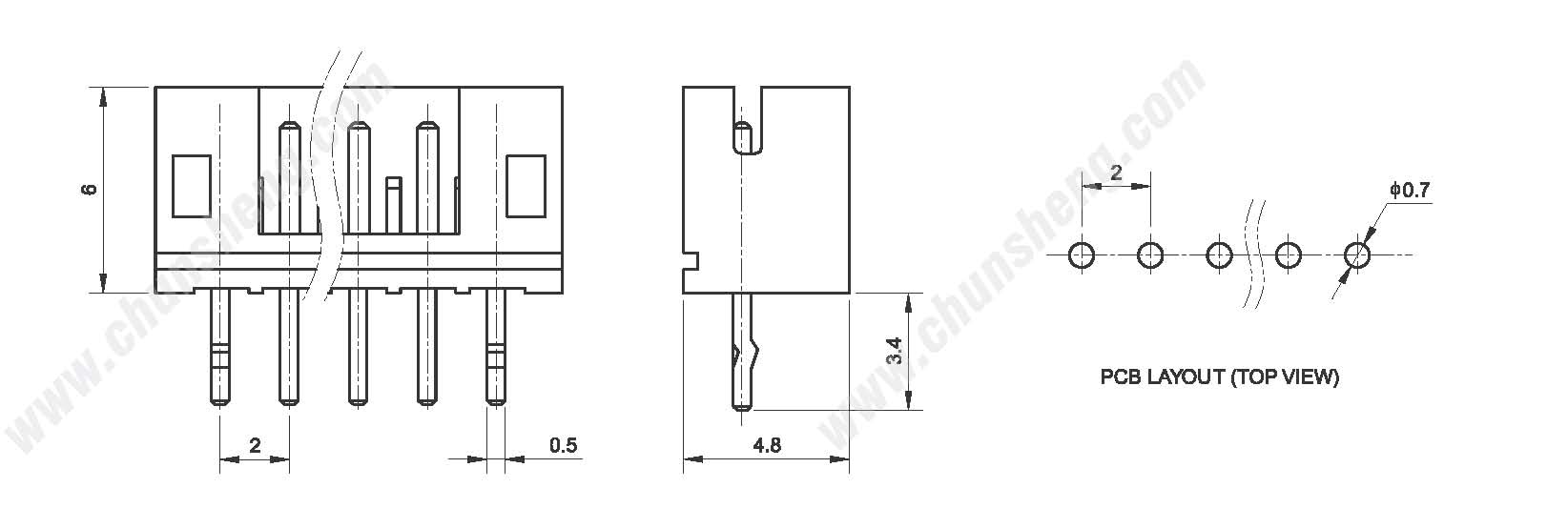

PATH IMAGE
PDF DOWNLOAD
click to download PH-nA PDF PDF Reader:Official Download
