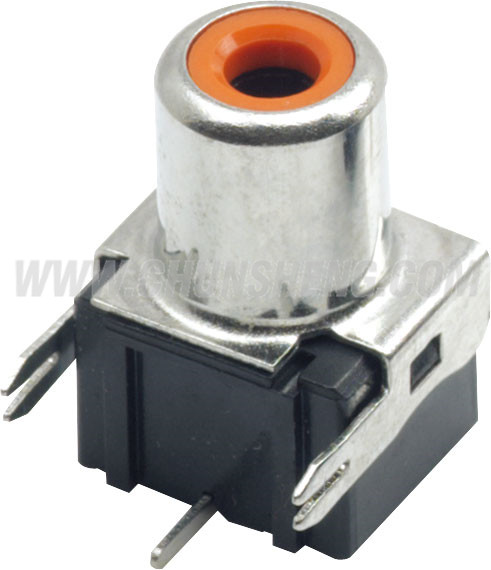

RCA-143
Upload Time: 2019-04-08 16:39:14
 RCA-143
Click for larger image
SPECIFICATION
Contact Resistance≤30mΩ
Insulation Resistance≥100MΩ
Withstand Voltage500V,AC/minute
Rated Load30V DC 0.3A
Temperature Range-25℃~+70℃
Insertion and Extraction Force(Only Center Pin)0.8N~20N
Insertion and Extraction Force (With Shell)3N~30N
Life500 Cycles

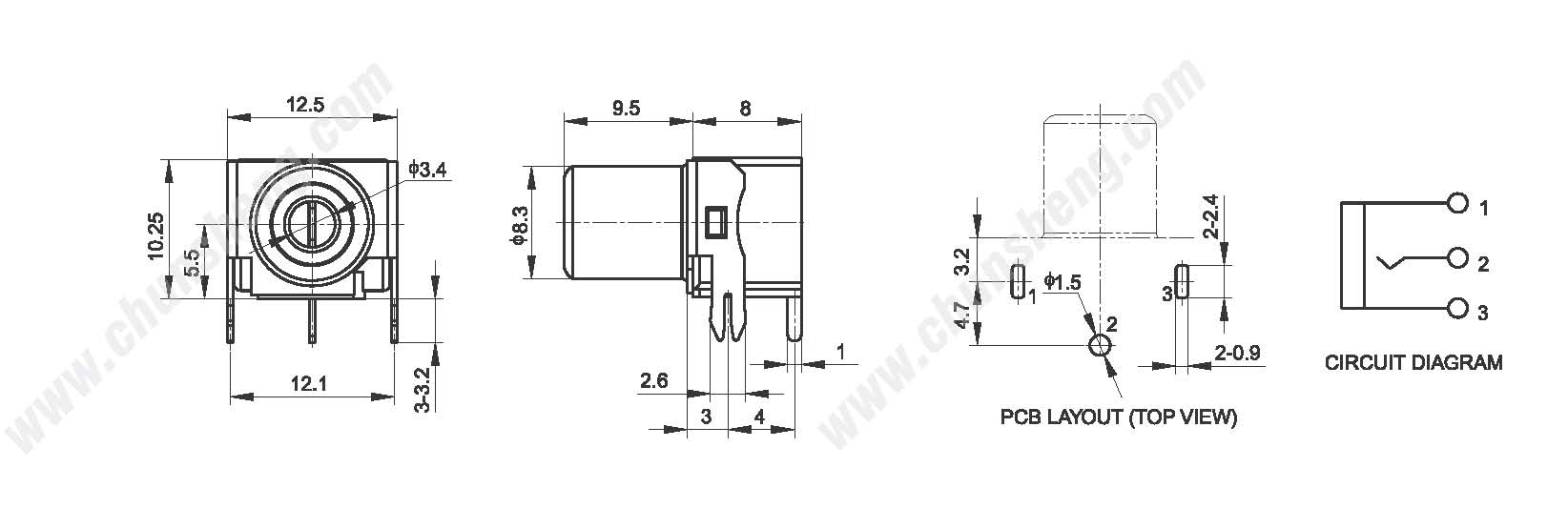

PATH IMAGE
PDF DOWNLOAD
click to download RCA-143 PDF PDF Reader:Official Download
