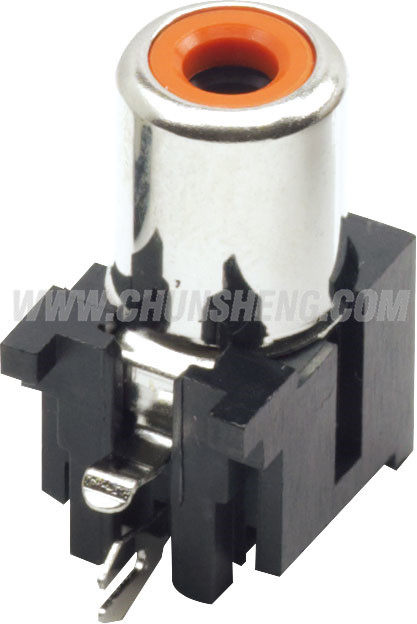

| RCA-105M |
| Upload Time: 2019-04-08 16:39:14 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤30mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 500V,AC/minute | | Rated Load | 30V DC 0.3A | | Temperature Range | -25℃～+70℃ | | Insertion and Extraction Force(Only Center Pin) | 0.8N～20N | | Insertion and Extraction Force
(With Shell) | 3N～30N | | Life | 500 Cycles |
|
|
|
|
Download Tip:
1, the product details as PDF document;
2. If you can not open the document after downloading, please install PDF reader;
3, download recommended to download tools or Save Target As. |
|
|
|
