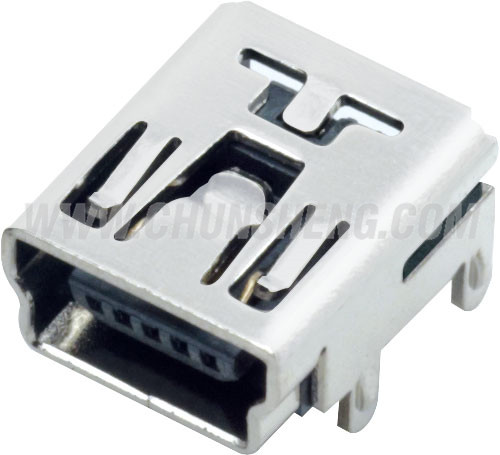

| MUSB11X-DB529R |
| Upload Time: 2019-04-08 16:42:33 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤50mΩ | | Insulation Resistance | ≥100MΩ | | Withstand Voltage | 100V AC/minute | | Rated Load | 30V DC 1A | | Temperature Range | -25℃～+85℃ | | Insertion Force | ≤35N | | Extraction Force | ≥7N | | Life | 5000 Cycles |
|
|
|
|
