MUSB111-PB523R
Upload Time: 2019-04-08 16:42:33

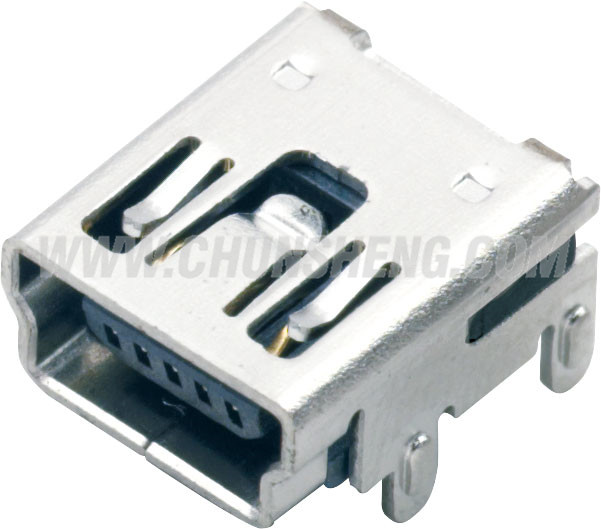

 MUSB111-PB523R
Click for larger image
SPECIFICATION
Contact Resistance≤50mΩ
Insulation Resistance≥100MΩ
Withstand Voltage100V AC/minute
Rated Load30V DC 1A
Temperature Range-25℃~+85℃
Insertion Force≤35N
Extraction Force≥7N
Life5000 Cycles

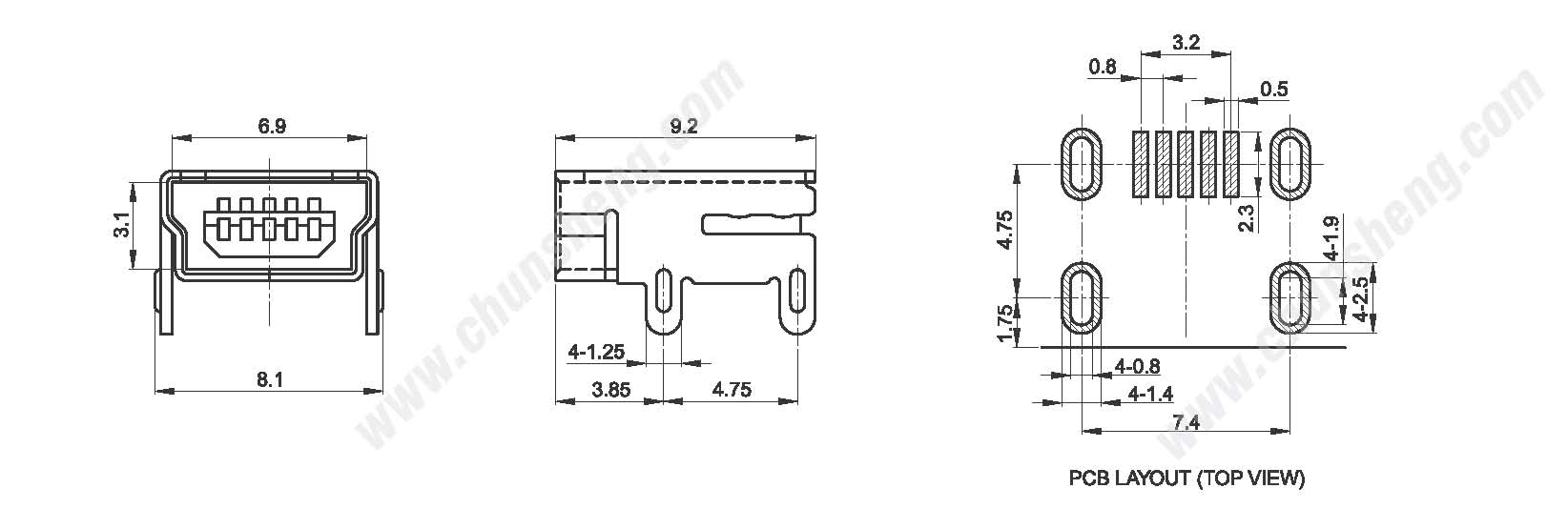

PATH IMAGE
PDF DOWNLOAD
click to download MUSB111-PB523R PDF PDF Reader:Official Download
